We invite you to visit the exhibition——
With the explosive growth in fields such as 5G communication, the Internet of Things, artificial intelligence, smart wearables, new energy vehicles, and industrial automation, the market demand for high-precision, low-power consumption, and miniaturized crystal oscillators continues to rise. At the same time, the global semiconductor industry chain is accelerating its restructuring, and domestic substitution and supply chain stability have become key issues in the industry. Against this backdrop, the Shenzhen International Electronics Exhibition, as a significant local platform for professional electronic components and embedded technologies, extended an olive branch to SCTF, which possesses both technological innovation capabilities and a flexible production system, coincided with this exhibition.
From August 26th to 28th,SCTF will present a variety of independently developed high-precision and differentiated quartz crystal oscillator products at the 22nd Shenzhen International Electronics Exhibition. It will showcase multiple application solutions for the electronics industry. At the same time, we are looking forward to learning and exchanging ideas with experts, scholars and exhibitors at the exhibition.
Low phase noise clock oscillator
Adopting advanced crystal oscillator technology, it features excellent phase jitter and phase noise performance, providing pure clock signals for high-precision applications. It also offers customized services to meet the timing requirements of special applications. It is commonly used in products such as AI glasses, smart headphones, audio and video equipment, and intelligent stethoscopes.
Product advantages: The phase noise performance value can reach -160DBC/Hz at 1kHz and 3.3V.
Package specifications: SMD 2016/2520/3225/5032/7050
Frequency range: 1 - 54MHz
Operating voltage: 1.8V, 2.5V, 3.3V
Frequency tolerance: ±10ppm/±20ppm max
Temperature characteristics: ±20ppm/±30ppm max
Operating temperature: -20℃ to +70℃, -40℃ to +85℃

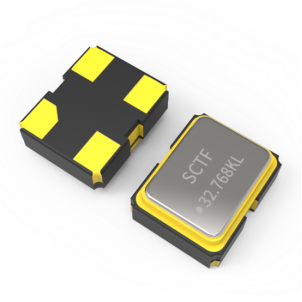

Low-power 32.768kHz clock oscillator
Using high-precision crystal oscillator technology, it is specially designed for RTC real-time clocks and portable devices. It can significantly reduce the overall power consumption of the system, providing long-lasting battery-powered endurance for portable or Internet of Things devices. It is mainly applied to products such as smart watches, intelligent robots, smart medical devices, smart locks, power managers, sensors, etc.
Product advantages: Achieve ultra-low operating current, with the maximum being only 7.2μA, while maintaining excellent temperature characteristics.
Package specifications: SMD 2016/2520/3225/5032/7050
Rated frequency: 32.768kHz
Operating voltage: 1.8V, 3.3V
Frequency tolerance: ±10ppm/±20ppm max
Temperature characteristics: ±20ppm/±30ppm max
Operating temperature: -20℃~+70℃, -40℃~+85℃
Low-voltage clock oscillator
Providing a stable and reliable clock source for portable devices with ultra-low operating voltage, and supporting customized services, is the best clock solution for the next generation of portable electronic devices to achieve high precision, low power consumption and small size balance. It is commonly applied in products such as intelligent robots, unmanned aerial vehicles, and AI computing servers.
Product advantages: Operates stably within a power supply voltage range of 0.8V to 2.0V
Package specifications: SMD 2016/2520/3225/5032/7050
Frequency range: 0.75 to 50 MHz
Operating voltage: 0.8V, 1.2V
Frequency tolerance: ±10ppm/±20ppm max
Temperature characteristics: ±20ppm/±30ppm max
Operating temperature: -20℃ to +70℃, -40℃ to +85℃
DXO Differential Output Oscillator
By adopting high-performance crystal oscillator technology, it provides stable and reliable differential clock signal output, meeting the requirements for clock signal integrity in various application scenarios. For high-end applications, it offers precise and reliable clock solutions. It is mainly applied in products such as AI servers, high-speed storage, 5G base stations, data center switches, optical module transmission, industrial computers, etc.
Package specifications: SMD3225/5032/7050
Output modes: LVPECL/LVDS/HCSL
Frequency range: 90~160 MHz
Operating voltage: 1.8V, 2.5V, 3.3V
Frequency tolerance: ±10 ppm / ±20 ppm max
Temperature characteristics: ±20 ppm / ±30 ppm max
Operating temperature: -20℃~+70℃, -40℃~+85℃

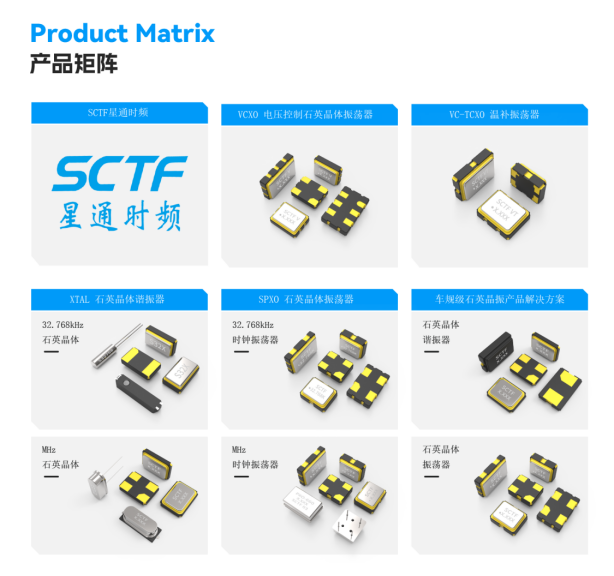

SCTF has been deeply engaged in the quartz crystal field for over 20 years. As a national high-tech enterprise and a specialized and innovative enterprise, it has accumulated years of technical experience and holds 30 or more independent patents. It focuses on providing customers with high-quality, high-precision, and highly reliable quartz crystal application solutions and personalized frequency customization plans. Currently, it has established a complete and comprehensive product matrix in the quartz crystal industry, with a wide range of categories, including but not limited to:
SPXO quartz crystal oscillators (MHz clock oscillators, 32.768kHz clock oscillators)
XTAL quartz crystal resonators (MHz quartz crystals, 32.768kHz quartz crystals)
VC-TCXO temperature-compensated oscillators
VCXO voltage-controlled quartz crystal oscillators
Vehicle-grade quartz crystal oscillators/resonators
The quartz crystal oscillator of SCTF, with its features of ultra-small size, high precision and high reliability, has been widely applied in the following industries and products with the support of professional and meticulous services from the company:
New energy vehicle electronics: intelligent cabin, car instrument panel, in-vehicle entertainment information system, radar navigation system, laser radar, etc.
Smart energy: photovoltaic storage charging inspection, photovoltaic inverter, charging pile, digital power supply, etc.
Industrial control: robots, drones, industrial computers, high-performance computing processor core board, embedded processor, etc.
Network communication: 5G base station, data center switch, router, optical modem, WIFI, etc.
Smart home: smart refrigerator, TV, intelligent lighting system, smart door lock, vacuum cleaner robot, etc.
Smart healthcare: intelligent stethoscope, hospital self-reporting machine, diagnostic equipment, etc.
Smart wearables: AI glasses, AI toys, AR/VR, mouse, printer, sports camera, etc.
We sincerely invite you to visit SCTF Star Time and Frequency——
The Shenzhen International Electronics Exhibition is a primary platform for hardware and embedded developers, purchasing managers, and decision-makers to learn about new technologies, new products, and product selection. We sincerely invite you to come and explore development opportunities together with thousands of industry colleagues, and inject innovative momentum into your business!
Location: Hall 1, No. 1J19, Futian Convention Center, Shenzhen
SCTF Star Time Frequency Looking forward to meeting you!
